Description
The super marking engraving machine is an advanced industrial equipment integrating optical imaging, intelligent recognition and high-precision laser processing. Its core functions include automatic positioning, pattern recognition, batch processing and data traceability. It is suitable for surface marking, engraving and coding requirements of various materials such as leather, fabric, plastic, ceramic and acrylic. The equipment supports multiple file format inputs (such as vector graphics, bitmaps, QR codes, serial numbers, etc.), and combined with an intelligent software system, it can meet the high-precision and high-efficiency marking requirements in industrial automation production. It helps enterprises achieve efficient, environmentally friendly and intelligent production upgrades.
Product features
1. Intelligent visual positioning system: Equipped with a high-precision CCD camera, it can automatically capture the contour of the workpiece or preset marking points, achieve fast positioning, and reduce manual alignment errors. Supports template matching, feature recognition, and other functions, especially suitable for irregular workpieces or batch processing scenarios.
2. Reduce labor costs: The automatic recognition and positioning function reduces manual intervention, and operators only need to load materials to complete the entire processing process.
3. Improve the yield rate: The visual system provides real-time correction to avoid marking errors caused by workpiece displacement or material deformation.
4.Strong flexibility and adaptability: supports mixed line processing of multiple materials and shapes of workpieces, quickly switches marking content, and meets small batch customization needs.
5. High long-term stability: Adopting imported metal encapsulated RF Co2 laser, the laser has a lifespan of over 100000 hours, and the camera system has strong anti-interference ability, adapting to complex workshop environments.

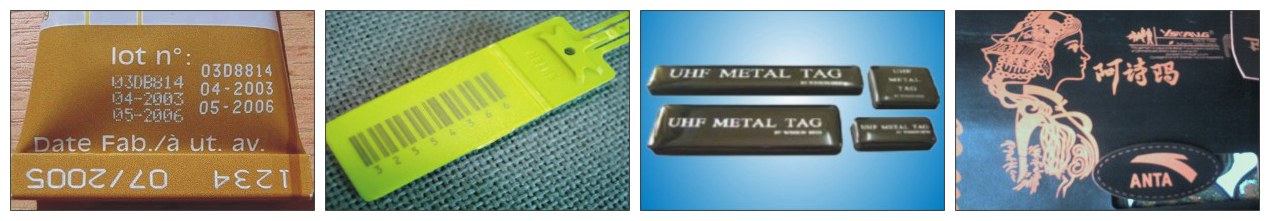

Application examples
Tags:
Application materials
Metals: stainless steel, aluminum alloy, titanium alloy, coated metals, etc;
Non metallic materials: ABS plastic, acrylic, rubber, ceramics, glass, wood, leather;
Special materials: oxide coating, anodized surface, polymer film.
Application industry
1.Electronic components industry: used for PCB board QR code marking and chip serial number engraving, meeting the requirements of miniaturization and high-density identification of electronic components.
2.Automotive parts manufacturing: Marking VIN codes and production dates on engine components, sensors, wiring harnesses, etc., supporting persistent labeling in high temperature and oil contaminated environments.
3.Medical devices and packaging: Mark UDI (Unique Device Identification) on surgical instruments and drug packaging to comply with medical industry traceability regulations.
4.Jewelry and handicrafts: achieve micro carved anti-counterfeiting markings on the surface of precious metals and jade, with delicate patterns and no thermal damage.
5.Food and beverage industry: Printing production batch numbers and shelf lives on bottle caps and packaging films to adapt to high-speed assembly line operations.
Application examples
Product model | JHX-6060S |
Laser type | Import metal encapsulating RF Co2 laser |
Laser power | Option：40W/70W |
Marking area (mm) | 600×600 |
Marking depth | ≤5mm （Adjustable） |
Cooling method | Water-cooling |
Marking speed | 0-12000mm/s |
Marking repeat precision | ≤±0.01mm |
Marking line width | ±0.01mm |
Min character | 0.30mm |
Equipment accessories | Wind pump, Wind pipe etc |
Pulse frequency | ≤100KHZ |
Working voltage | 220V±10% 50-60HZ |
Different specifications and sizes can be customized. | |
