Smart 6 Heads Laser Cutting Machine

Six laser heads work simultaneously to cut the same shape, greatly improving production efficiency, with high consistency and accuracy. It is a powerful machine for batch cutting of smaller shapes, especially suitable for perforating cap pieces.

Equipment model

JHX160100Ⅵ
Customizable in different sizes and specifications
Request a Quote
Description
Materials and Applications
Sample
Parameter
Other
Description

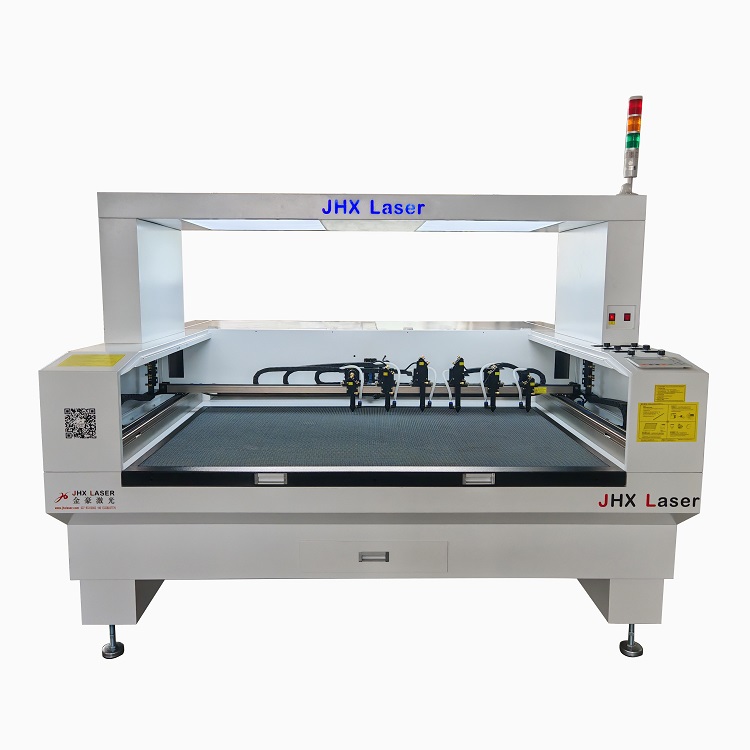

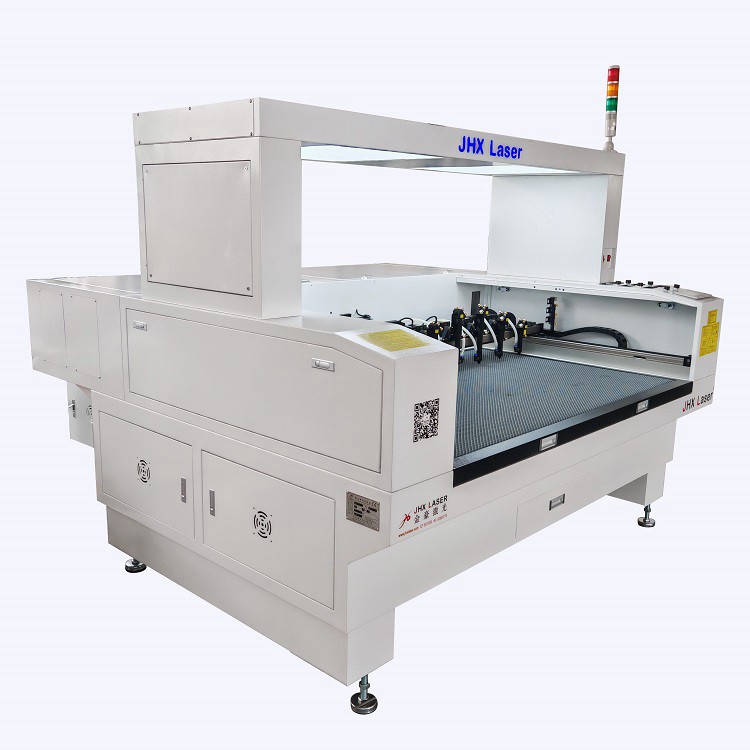

This is a smart 6 laser heads cutting machine with a honeycomb board platform. The 6 laser heads are loaded on the same X-axis crossbeam and can automatically adjust their distance from each other. The 6 laser heads work simultaneously to cut the same shape, with high consistency and greatly improving production efficiency. The cutting accuracy is high, making it a powerful tool for batch cutting of smaller shapes.

The customer customized this 6-head laser machine is mainly used to create breathable holes for cap pieces, with smooth edges of the circular holes, automatic edge sealing.One machine can complete the two processes of punching and cutting, with high processing efficiency.This machine is also particularly suitable for batch cutting of smaller shapes in other applications, such as leather shoe punching, insole cutting, pocket lining cutting, etc.

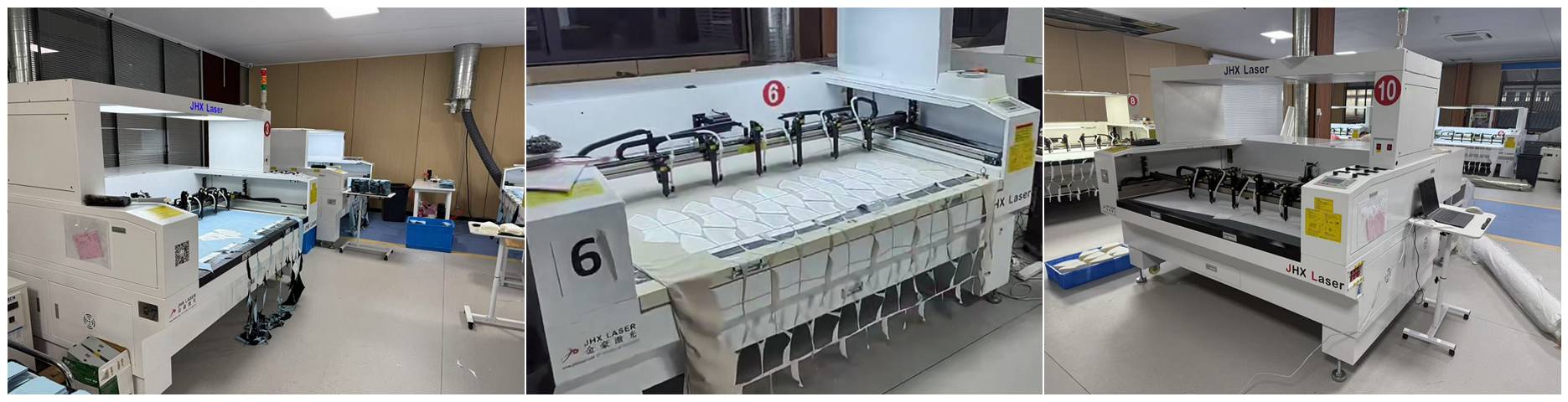

Application Scenarios


Application Video

Tags:

Applicable materials and applications

Suitable for various fabrics, non-woven fabrics PVCLeather, PU leather, composite fabrics, etc.

Used for punching holes in sports and fitness hats (such as running hats, cycling hats, basketball hats), outdoor functional hats (sun hats, fishing hats, hiking hats), fashion trend hats (baseball hats, berets), and other hat pieces.




Product model

JHX160100Ⅵ

Laser type

Hermetical and detached Co2 laser tube

Laser power

Option:100W/120W/150W

Cutting area (mm)

1600×1000

Control software

JHX professional controlling software

Cooling method

Water-cooling

Cutting speed

0-1500mm/s

Positioning accuracy

≤±0.02mm

Cutting power control

Fine tuning possible

Working voltage

220V±10%  50-60HZ

Moving system

Imported servo system

Equipment accessories

Wind pump, Wind pipe etc

Data format

AΙ/BMP/PLT/DXF/DSΤ

Different specifications and sizes can be customized; Import metal encapsulating RF Co2 laser is optional.
